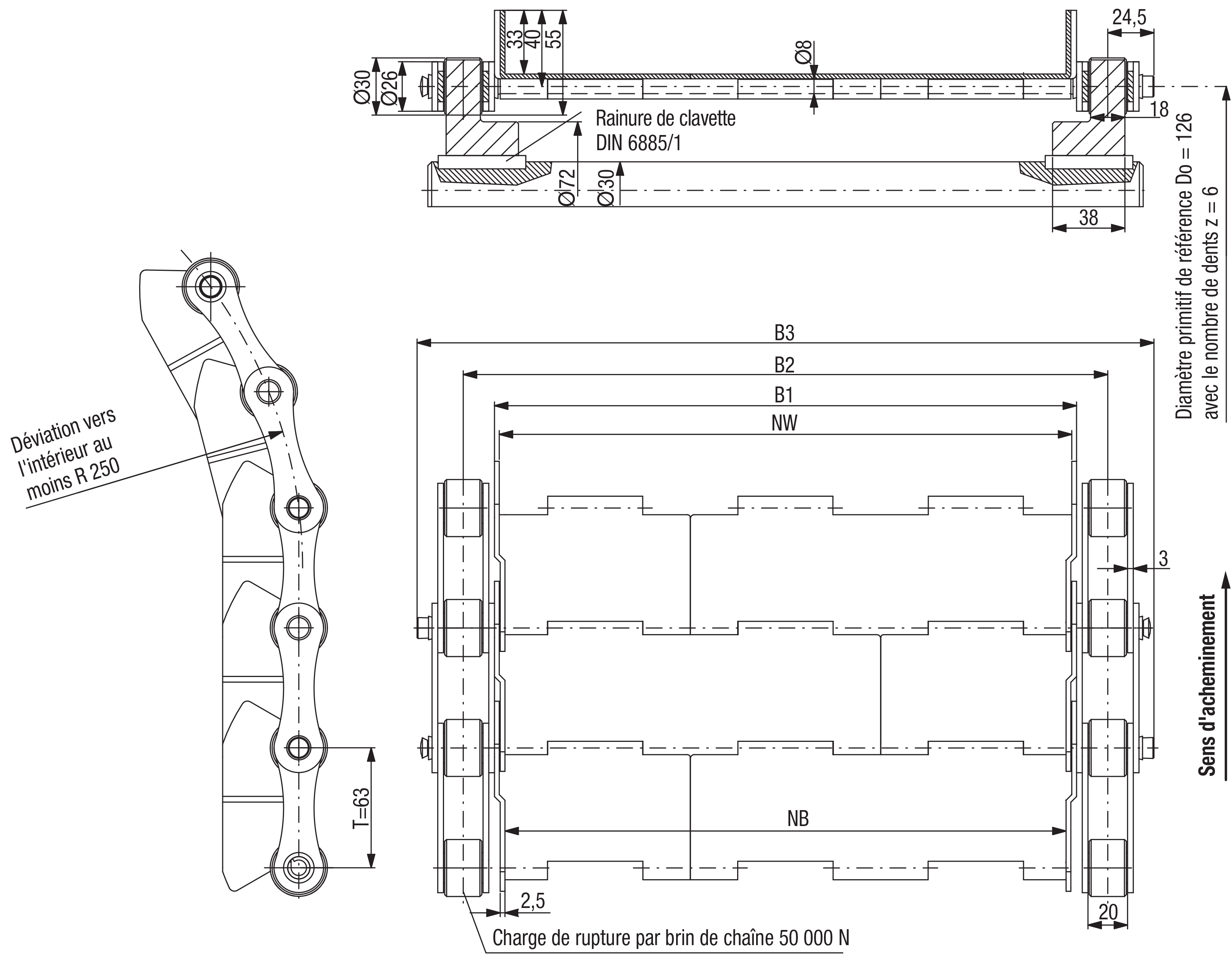

Metallic conveyor belt in pitch 63 with chain drive 20 mm

Sizes 20

Filtre	Valeur de filtre
NW mm Nominal width
NB mm Wordking width
B1 mm Outside width
B2 mm Centre distance of chain
B3 mm Total width
Weight kg/meter

NW mm Nominal width	NB mm Wordking width	B1 mm Outside width	B2 mm Centre distance of chain	B3 mm Total width	Weight kg/meter
Tolerance ±2,0mm	Tolerance ±2,0mm	Tolerance ±2,0mm	Tolerance ±1,0mm	Tolerance ±2,0mm

200	194	205	239	288	14.6
250	245	256	290	339	16.3
300	295	306	340	389	18.0
350	345	356	390	439	19.7
400	395	406	440	489	21.4
450	445	456	490	539	23.1
500	495	506	540	589	24.8
550	545	556	590	639	26.5
600	595	606	640	689	28.2
650	645	656	690	739	29.9
700	695	706	740	789	31.6
750	745	756	790	839	33.3
800	795	806	840	889	35.0
850	845	856	890	939	36.7
900	895	906	940	989	38.4
950	945	956	990	1039	40.1
1000	995	1006	1040	1089	41.8
1050	1045	1056	1090	1139	43.5
1100	1095	1106	1140	1189	45.2
1150	1145	1156	1190	1239	46.9
1200	1195	1206	1240	1289	48.6
