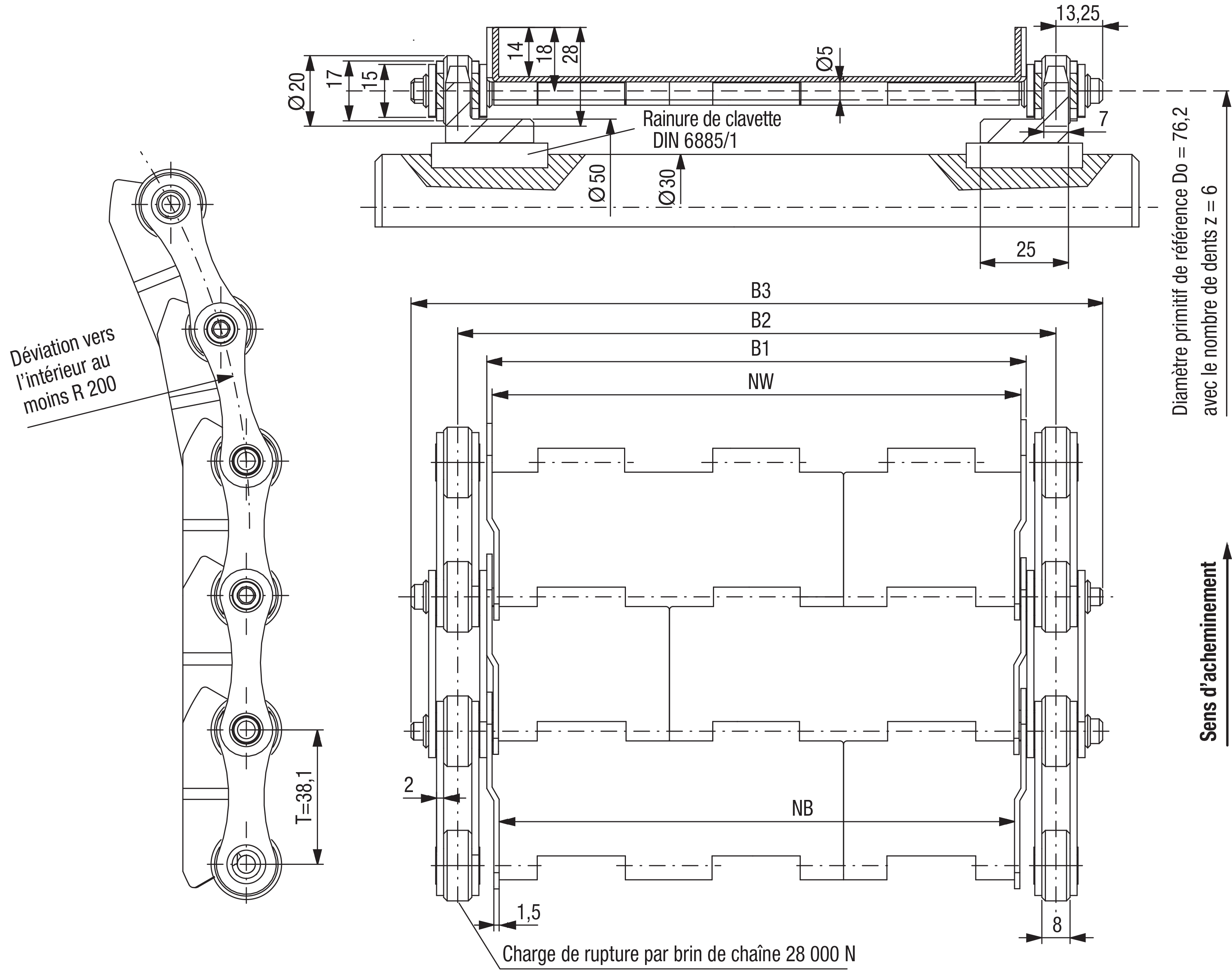

38.1 mm Steel Hinged plate conveyor

Steel

Filtre	Valeur de filtre
NW mm Nominal width
NB mm Wording width
B1 mm Outside width
B2 mm Centre distance of chains
B3 mm Total width
Weight kg/meter

NW mm Nominal width	NB mm Wording width	B1 mm Outside width	B2 mm Centre distance of chains	B3 mm Total width	Weight kg/meter
Tolerance ±1,0mm	Tolerance ±1,0mm	Tolerance ±1,0mm	Tolerance ±1,0mm	Tolérance ±2,0mm

100	97	103	120	147	4.6
150	147	153	170	197	5.6
200	197	203	220	247	6.6
250	247	253	270	297	7.7
300	297	303	320	347	8.7
350	347	353	370	397	9.7
400	397	403	420	447	10.8
450	447	453	470	497	11.8
500	497	503	520	547	12.8
550	547	553	570	597	13.9
600	597	603	620	647	14.9
650	647	653	670	697	15.9
700	697	703	720	747	17
750	747	753	770	797	18
800	797	803	820	847	19
850	847	853	870	897	20.1
900	897	903	920	947	21.1
950	947	953	970	997	22.1
1000	997	1003	1020	1047	23.2
1050	1047	1053	1070	1097	24.2
1100	1097	1103	1120	1147	25.2
1150	1147	1153	1170	1197	26.3
1200	1197	1203	1220	1247	27.3
