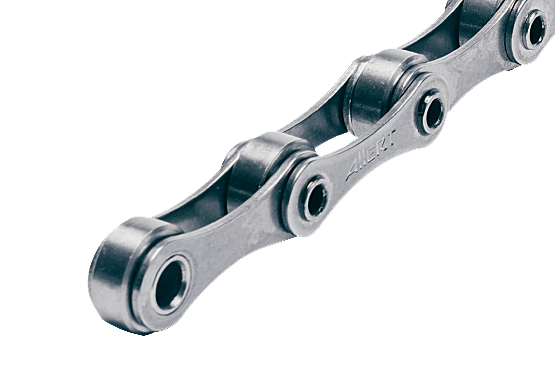

Hollow pin chain pitch 38.1 mm
| Filtre | Valeur de filtre |
|---|---|
| Pitch mm | |
| Inner width | |
| Roller Ø mm | |
| Hollow pin bore Ø mm | |
| Plate width mm | |
| Plate thickness mmm | |
| Chain width mm | |
| Breaking load FB min |
| Pitch mm | Inner width | Roller Ø mm | Hollow pin bore Ø mm | Plate width mm | Plate thickness mmm | Chain width mm | Breaking load FB min |
|---|---|---|---|---|---|---|---|
| 38.1 | 8 | 20 | 5.2 | 17 | 2 | 19.5 | 28000 N |
