25.4 mm Steel Hinged plate conveyor

Sizes

Filtre	Valeur de filtre

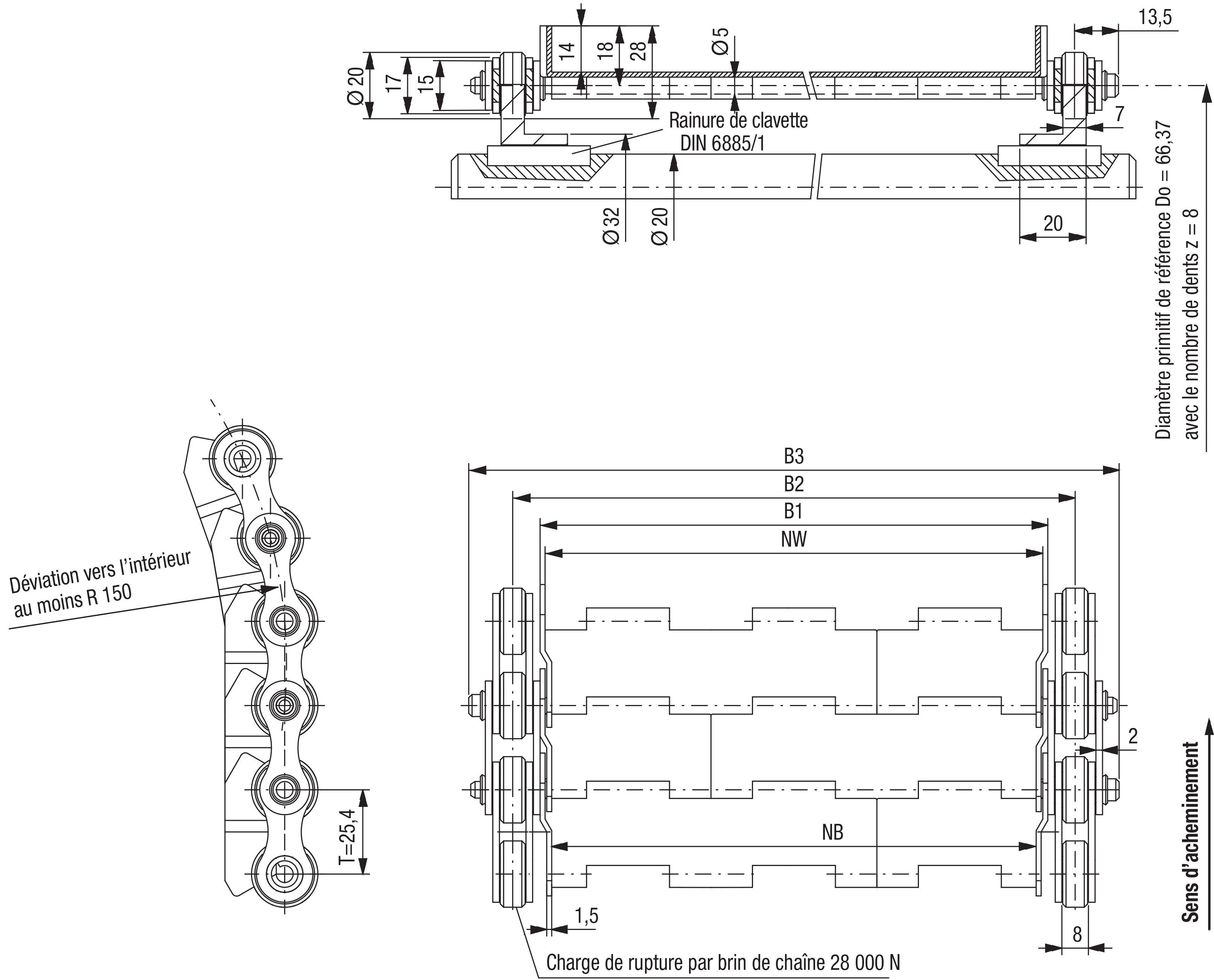

NW mm Nominal width
NB mm Wording width
B1 mm Outside width
B2 mm Centre distance of chains
B3 mm Total width
Weight kg/meter

NW mm Nominal width	NB mm Wording width	B1 mm Outside width	B2 mm Centre distance of chains	B3 mm Total width	Weight kg/meter
Tolerance ±1,0mm	Tolerance ±1,0mm	Tolerance ±1,0mm	Tolerance ±1,0mm	Tolérance ±2,0mm

100	96	103	120	147	5.2
150	146	153	170	197	6.4
200	196	203	220	247	7.6
250	246	253	270	297	8.8
300	296	303	320	347	10.6
350	346	353	370	397	11.3
400	396	403	420	447	12.5
450	446	453	470	497	13.7
500	496	503	520	547	15
550	546	553	570	597	16.2
600	596	603	620	647	17.5
650	646	653	670	698	18.7
700	696	701	718	748	19.8
750	744	751	768	798	21.1
800	794	801	818	848	22.4
850	844	851	868	898	23.6
900	894	901	918	948	24.8
950	944	951	968	998	26
1000	994	1001	1018	1048	27.2
1050	1044	1051	1068	1098	28.5
1100	1094	1101	1118	1148	29.7
1150	1143	1150	1167	1198	30.9
1200	1193	1200	1217	1248	32.1

* From the nominal size 650 , the pins are caulked on both sides.
