Standard sprocket pitch 25.4
A gear billet for a security training
| Filtre | Valeur de filtre |
|---|---|
| T mm | |
| z | |
| Do Ø mm | |
| N Ø mm | |
| NL mm | |
| Zb mmm | |
| tooth profile | |
| Bore Ø | |
| Groove |

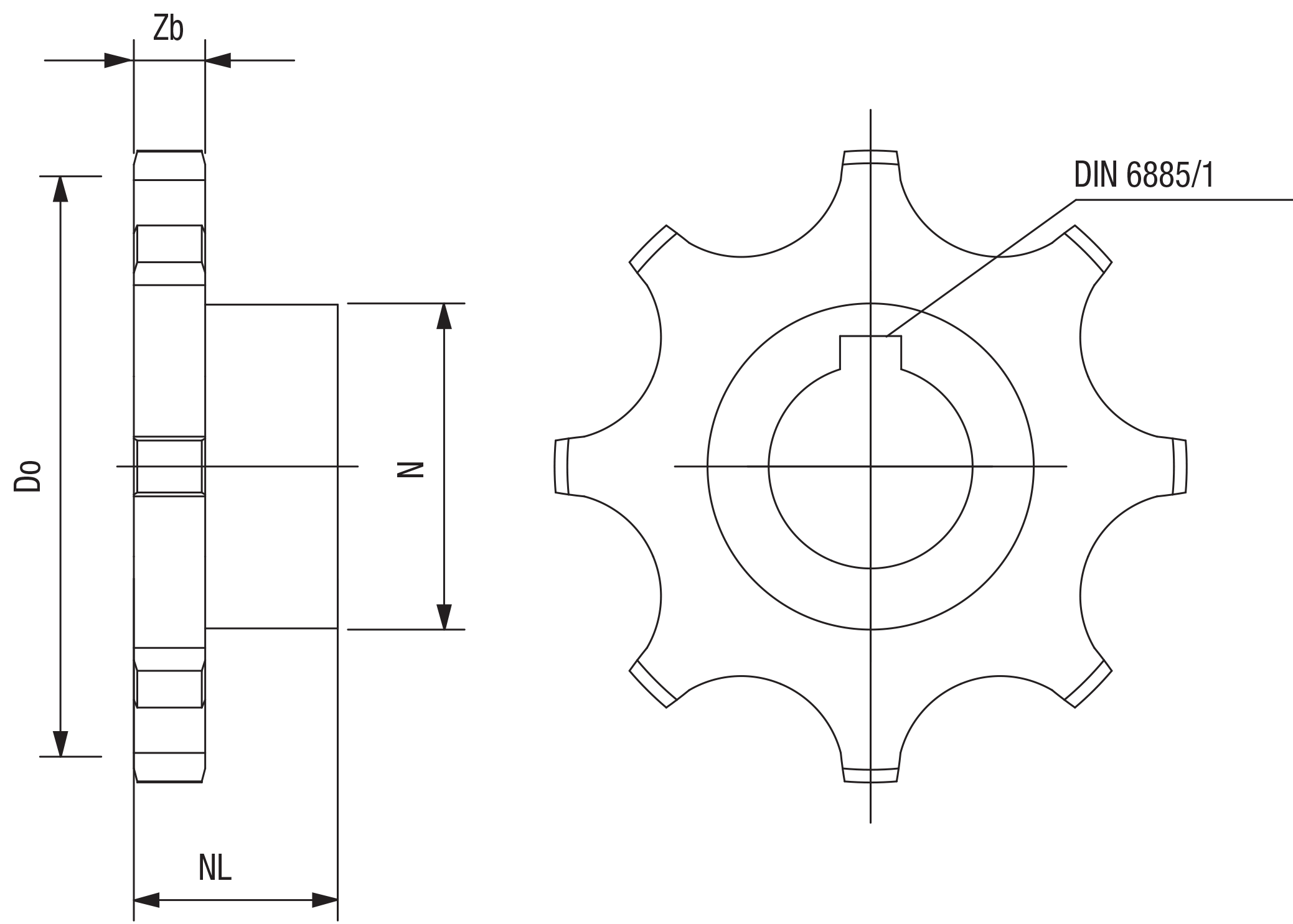

| T mm | z | Do Ø mm | N Ø mm | NL mm | Zb mmm | tooth profile | Bore Ø | Groove |
|---|---|---|---|---|---|---|---|---|
| 25.4 | 8 | 66.37 | 32 | 20 | 7 | DIN 8196 | 20 G7 | DIN 6885/1 |
| 25.4 | 8 | 66.37 | 32 | 20 | 7 | DIN 8196 | 20 G7 | sans |
| 25.4 | 9 | 74.26 | 48 | 25 | 7 | DIN 8196 | 25 H7 | DIN 6885/1 |
| 25.4 | 9 | 74.26 | 48 | 25 | 7 | DIN 8196 | 25 H7 | sans |
We devellops of specific gears machined from ground to train your carpet T25.4 metal conveyors. This drive sprockets technology guarantees a perfect resistance and rotation without any risk of derailment. The shape of the gear teeth enables perfect adequacy with the chain of carpet and guarantee a training parallelism.
